Oil Meter Pressure Drop Curves

VISCOSITY INFORMATION
Kinematic Viscosity Stokes, Centi-Stokes, mm2/s St, cSt, mm2/s
Dynamic Viscosity Pascal Seconds, Mllipascal Seconds Pas, mPa.s
  Poise, Centipoise (outmoded) P, cP

Conversion cSt Density = mPa.s
  Engler Degrees ° E to mPa.s: only use conversion table
  Saybolt Units to mPa.s: only use conversion table
  Redwood Units to mPa.s: only use conversion table

Rule-of-thumb 1cSt ➝ 1mm2/s ➝ 1 mPa.s

Oil Pressure Drop Curves D 4

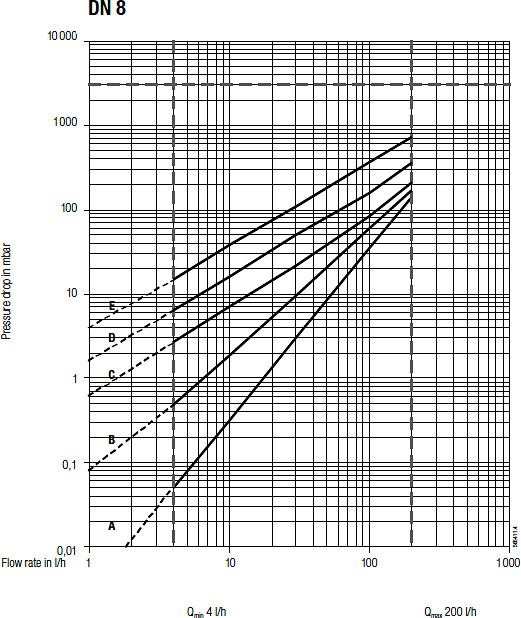

Oil Pressure Drop Curves D 8

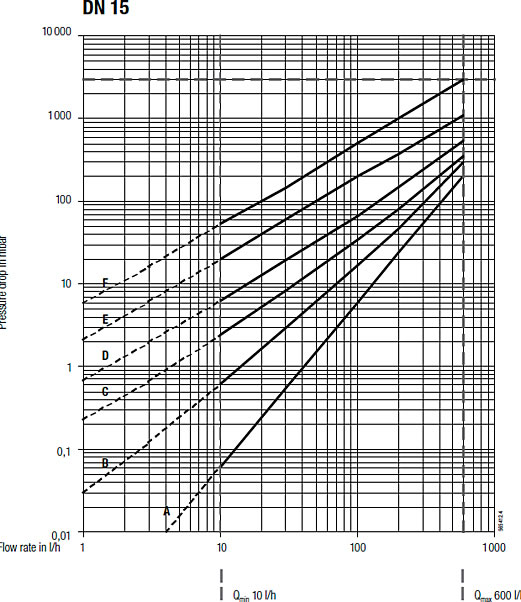

Oil Pressure Drop Curves D 15

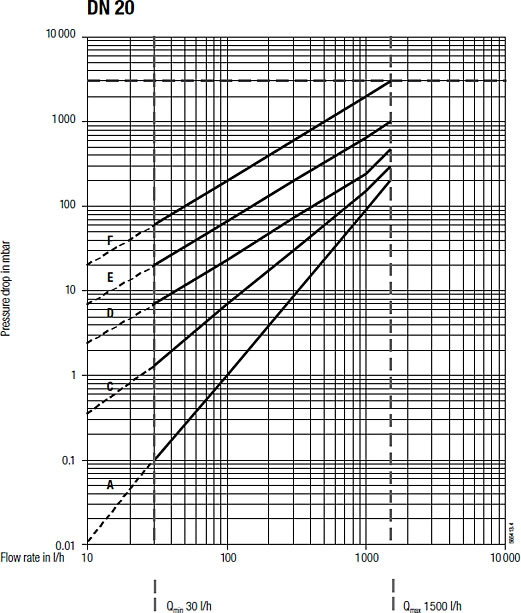

Oil Pressure Drop Curves D 20

Oil Pressure Drop Curves D 25

Oil Pressure Drop Curves D 40

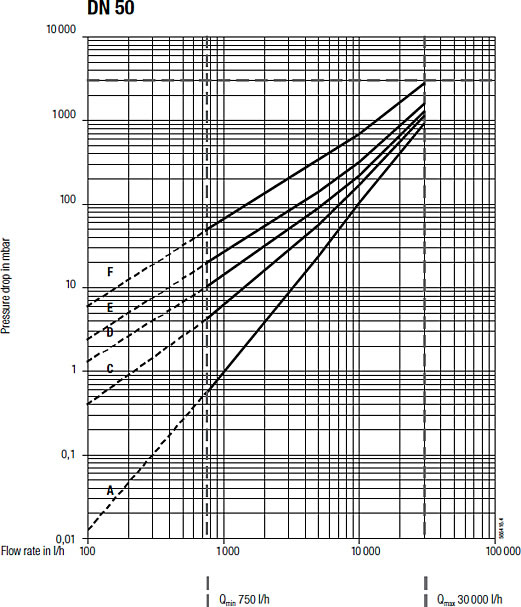

Oil Pressure Drop Curves D 50

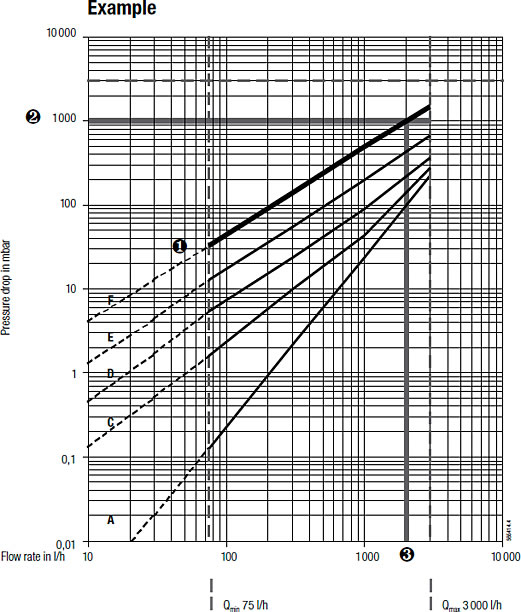

Example Mineral oil, viscosity 450 mPa.s
VZO 25 mounted on pressure side of pumps
❶ Viscosity curves DN 25
select closest curve
F = 500 mPa.s
❷Assume max. permissible pressure drop = 1 bar
❸ The intersection of curve F with the line corresponding
to 1bar gives a flow rate of 2000 l/h.

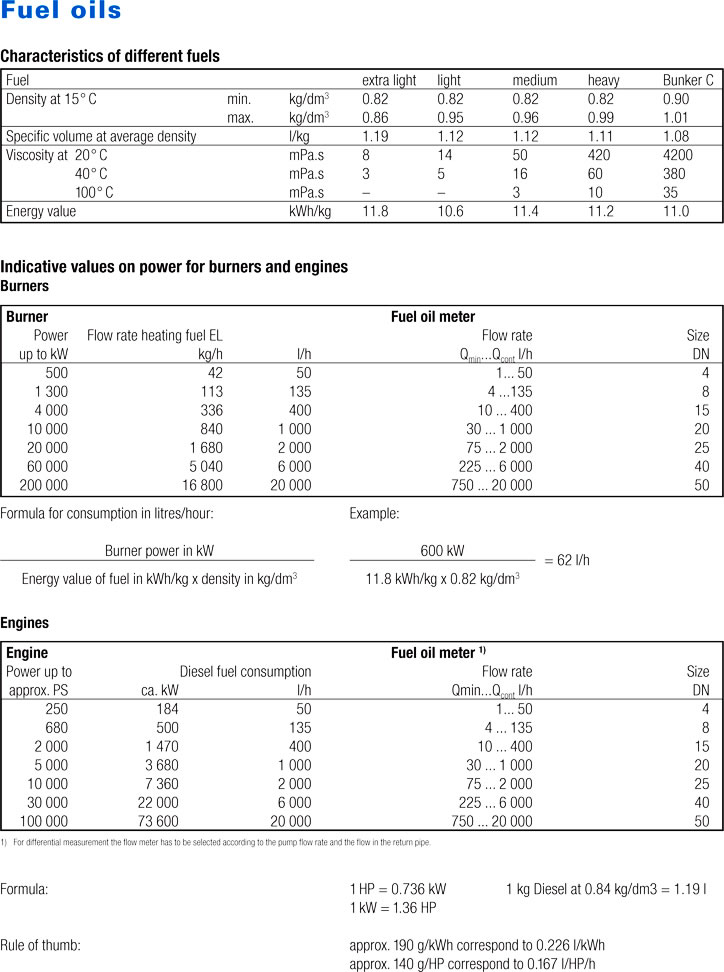

Oil Meter Fuel Oil Characteristics



VISCOSITY DIAGRAMS A=5 mPa.s C=100 mPa.s E=500 mPa.s
  B =50 mPa.s D=200 mPa.s
For a pressure drop of more than 1 bar, it is recommended to use the next larger meter size.
Maximum permissible pressure drop = 3 bar
