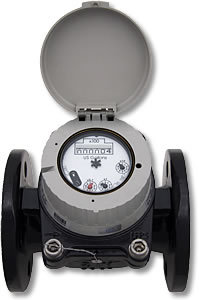

1700 Series Water Meter

Single-Jet

Single-Jet Design with Only the Impeller in the Flow Chamber for Reliable Performance Economical Design and Long-lasting Life Tamper-proof "Snap" Cover Assures Accurate and Proper Readings Roller Counter can be Rotated for Easy Reading – “Dry Counter” Design Units Available with Pulse Output Compact Design for Easy Installation Mount Horizontal or Vertically

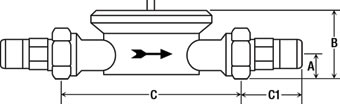

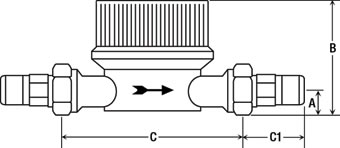

	Dimensions	1700	1702	1710	1712
	Pipe Size	1/2"	1/2"	3/4"	3/4"
	A	3/4"	3/4"	7/8"	7/8"
	B	2"	2"	3-5/8"	3-5/8"
	C	4-15/16"	4-15/16"	5-1/8"	5-1/8"
	C1	2-3/8"	2-3/8"	2-1/2"	2-1/2"

HEAD LOSS

ACCURACY FLOW RATE

HEAD LOSS

ACCURACY FLOW RATE

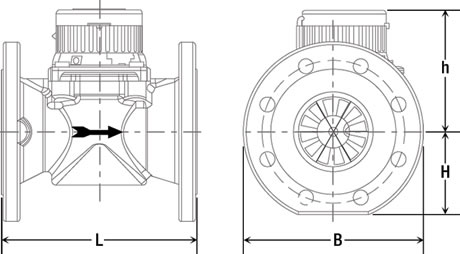

Dimensions 1750/1752 D 2" B 6-1/8" L 7-7/8" H 2-7/8" h 4-7/8"

HEAD LOSS

ACCURACY FLOW RATE

INSTRUCTIONS

1. Before beginning the installation, verify that the system temperature, pressure and flow rate do not exceed the ratings indicated on the meter.
2. The meter is designed to operate at a sustained flow of 1/2 the Maximum Flow Rating (indicated as the Continuous Flow Rating). The meter should not be operated at the Maximum Flow Rating for more than one hour per day as excessive wear and/or failure will result.
3. Flush the pipeline thoroughly after any plumbing changes to eliminate the possibility of foreign materials reaching the meter.
4. The 1/2" and 3/4" meters may be installed in horizontal or vertical pipelines (either up or down flow). To achieve the rated accuracy, the meter should be the same diameter as the pipe and there should be at least five (5) pipe diameters of straight pipe before and after the meter. Meters 1" and larger must be installed on horizontal pipelines only. There is no straight pipe requirement before or after the 1' and larger meters. In horizontal installations, the flow counter should be facing straight upward.
5. Pay careful attention to the flow direction as indicated by the arrow cast into the meter body.
6. It is highly recommended that a strainer be installed upstream of the meter inlet. It is also recommended that a shutoff valve be located before and after the meter to facilitate service.
7. Care should be taken to protect the meter from water hammer as well as freezing temperatures.
8. The counter is calibrated in U.S. gallons and cannot be reset. It will roll around to zero after reaching its maximum reading.
9. All 1700 Series meters are equipped with a pulse output (magnetically driven "dry contact type" reed switch). Each contact closure is equal to one (1), ten (10) or one hundred (100) gallons of water as indicated on the meter. The electrical rating of the switch is 0.2 amps at 24 volt.

HOW TO READ AN 1700 SERIES WATER METER

The 1700 Series counter consists of a row of numbers (roller counter) and one or more circular dials with rotating pointers. There is also a star shaped wheel that rotates whenever flow is present (trickle indicator).

The roller counter is calibrated in U.S. gallons and cannot be reset. It indicates the total flow through the meter in gallons, hundreds of gallons, thousands of gallons, etc. The correct multiplier is indicated on the face adjacent to the roller counter. In the example above, the amount indicated is 345 x 100 or 34,500.

The circular dials indicate tenths of gallons, gallons, tens of gallons, etc. The respective multiplier is marked adjacent to the dial. For example, on the dial marked "x10", each number represents increments of ten gallons (i.e., 3 = 30 gallons, etc.) and one full rotation equals 100 gallons. On the dial marked "x0.1", each increment is one tenth (1/10) of a gallon (4 = 0.4) and a full rotation of the dial represents a total of 1 gallon. Note that if the pointer is between two numbers, the lower number is read.

The reading represented by the counter displayed above is 345 x 100 plus 6 x 10 plus 5 x 1 plus 3 x 0.1 or 34,565.3 gallons.

The counter will roll around to zero and restart once it reaches its maximum reading.
