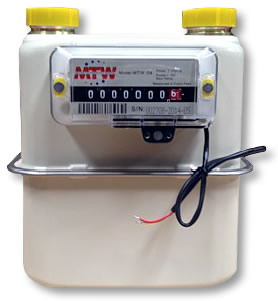

 MTW / G4 Diaphragm Gas Meter 211CFHMTW / G4 Diaphragm Gas Meter 211CFH

FEATURES

  • Pulse Output (1 / cu ft)
  • Sealed Register for Tamper-resistance
  • Compact Design
  • Low Noise
  • Stamped Steel Case
  • Sprague #1A Connections, not tapered NPT

SPECIFICATIONS

  • Flows from 1.4 ft
  • Working Temperature Range: 4° F to 122° F
  • Pulse Output 12VDC max @ 10mA
  • 7.5 psi max Operating Pressure
  • 0.04 cu ft Cyclic Volume

APPLICATION

For use in submetering applications where compact size and pulse output are desired. The MTW / G4 gas meter is designed for environments where temperature compensation is not required. The meter incorporates Sprague #1A top connections to allow industry-standard swivels to be installed thus negating the need for plumbers to “field design” a union system. This straight mechanical thread configuration is standard for all municipal meters as it allows the swivels to seal on a flat washer rather than relying on pipe dope and tapered NPT threads.

Max Flow Rate: 211 cfh
Min Flow Rate: 1.4 cfh
Max Working Pressure: 5 psi
Operating Temperature: -4°F - 122°F
Register Capacity: 9999999.9 (ft3)

Pulses/ft3: 1/1
Electrical Ratings:

Maximum Voltage: 12 VDC
Maximum Current :10 mA
Resistor: 0.5 Ohm
Duty Cycle: 10% On

Case: Material Steel
Exterior Finish: Powder-coated
Connection Type: Sprague #1A
Gland/Cable (supplied): 6' of 4-wire

IN-Z31: Green/brown are pulse (N/O)
Yellow/white are tamper (N/C)
IN-Z62: Orange/blue are pulse (N/O)
No tamper wires

Dimensional Drawing


Case
Material
Dimensions (inches)
Weight
Connection
Threads

steel
A
B
C
D
E
(lbs)



4.3
9.1
2.8
8.1
6.7
4.0
Sprague #1A

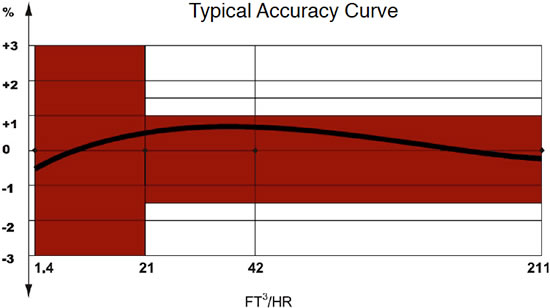

MTW-G4 Typical Application Graph
