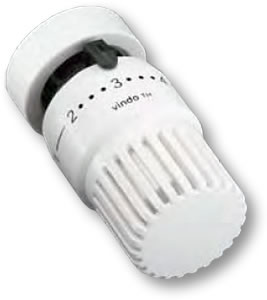

 Model 2200 Series Thermostatic Radiator Valve2200 Series Thermostatic Radiator Valve

ISTEC thermostatic valves maintain the space temperature by controlling the flow of hot water or steam to the room.

The valve body is made of noncorrosive nickel-plated bronze/brass and the valve stem and spring are made of stainless steel. The valve disc and “O”-ring is made of high temperature EPDM.

The actuators are available in non-electric and electric versions. They come in a self-contained, thermostat with 6' cap tube, and a remote sensing and adjustment units. The valves are available in straight, angle, and horizontal angle patterns.

The ISTEC valve cartridge can be exchanged while valves are installed and the system is under pressure by using the specially designed “demo-bloc” tool.



  • Special Valve Body Design
  • Prevents Flow Noises
  • Optimized CV Values
  • Replaceable O-ring Gland While Under System Pressure
  • Valve Cartridge can be Replaced Without Draining the System by means of "Demo-Bloc" Tool
Model 2260 Model 2260 – Thermostat with Internal Sensor Used When the Room Air Can Pass Freely Over the Sensor
Model 2270 Model 2270 – Thermostat with 6' Remote Capillary Sensor
Model 2290 Model 2290 – Remote Sensing and Adjusting Unit for Control of Inaccessible Valves

ISTEC thermostatic valves need no external power, they maintain the room temperature by controlling the flow of hot water or steam.
The valve body is made of noncorrosive nickel-plated bronze/brass. The valve stem and spring are made of stainless steel. The valve disc and O-ring are made of high temperature EPDM.

The valves are available in straight, angle and horizontal angle patterns. The ISTEC valve cartridge can be exchanged while valves are installed and the system is under pressure by using the specially designed "demo-bloc" tool.

Inteernal View of Model 2200 Series
TYPE
SIZE
ITEM NO.
REMARKS


Angle Pattern Valve

1⁄2" NPT

3⁄4" NPT

1" NPT

1-1/4" NPT

2202

2212

2222

2231

with NPT and Internal NPT thread

Angle Pattern Valve

Straight Pattern Valve

1/2" NPT

3/4" NPT

1" NPT

1-1/4" NPT

2200

2210

2-22

2230

with NPT and Internal NPT thread

Straight Pattern Valve

Reversed Angle Valve

1/2" NPT

3.4" NPT

2204

2214

with NPT and Internal NPT thread

Reversed Angle Valve

1-Pipe Steam Valve



2240

1/8" NPT

1-Pipe Steam Valve

Demo-Bloc for All Valves



2350

for Replacement of Cartridges

Demo-Bloc for All Valves

Self-Contained Thermostat



2260

with Built-in Sensor

Self-Contained Thermostat

Remote Sensor



2270

6' Capillary

Remote Sensor

Remote Sensor Controller



2290

6' Capillary

Remote Sensor Controller

Electrothermal Actuator



2280

24V Normally Closed

Electro-thermal Actuator

Replacement Insert



2358

Fits Any Valve

Replacement Insert

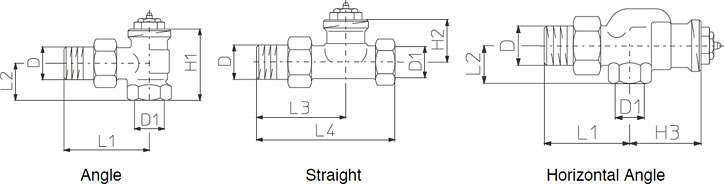

Series 2200 Dimensional Drawings

Series2200 Dimensions Table
