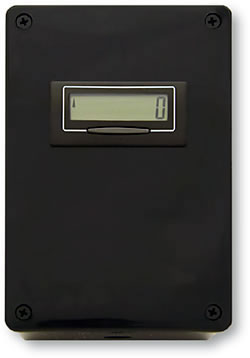

Model 9510/9512 Remote Meter Display

 Model 9510-9512 Liquid Crystal 8-Digit CounterCount total flow of any Reed Contact-equipped Water, Condensate, Oil Meter, etc. with this battery-powered Remote Liquid Crystal 8-Digit Counter.

Simple Wiring – just two wires, not polarity sensitive with a reset jumper located on the side. 8-year battery life. The 9510-9512 can be wired up to 25 feet away from the flow meter. There are two models available in NEMA 1 or NEMA 4X enclosures.

  • Model 9510 – 8-Digit, No Reset
  • Model 9512 – 8-Digit with Front Reset
  • Option – Model 9132 NEMA 4X Enclosure

SPECIFICATIONS

•  Power: Internal Lithium Battery – 8 years (at 20C)

•  Display: 8-digit Black LCD, Digit Size: 0.315" high

•  Temperature Range:
        Operating: -14 to 140°F (-10 to 60°C)
        Storage: -4 to 140°F (-20 to 60°C)
•  Signal Input:
        a) Slow-speed Contact Closure, 30Hz Maximum Speed, Negative Edge Triggered, Minimum Pulse 15mS
        b) External Reset Dry Contact with 0.7V Threshold, Minimum Pulse 50mS
•  Approvals: CE
•  Material: ABS Plastic
•  Connection: 8-pin Terminal Block
•  Reset Jumper: Side-mounted
•  Housing: 4" x 2-7/8" x 2-1/2" (WxHxD)
•  Optional Sealing: NEMA 4X / IP65 Enclosure

Specifications Subject to Change Without Notice
