Model AC-630 Diaphragm Gas Meter

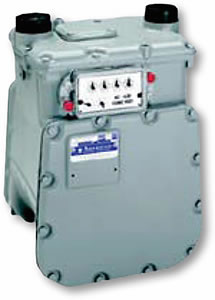

 Model AC-630 Diaphragm Gas MeterThe AC-630 Series commercial diaphragm meter is a positive displacement gas measurement devices with capacities of 630 ft3/hr. This meter use proven diaphragm meter technology in a 3-chambered design to provide accurate measurement across its respective flow range. Long-life and low maintenance are assured by the combination of a self-lapping orbital valve, a one-piece seamless diaphragm, and few moving parts.













  • Convoluted Diaphragms
  • Unique Valve Design
  • Small Meter Profile
  • Superior Corrosion Resistance
  • Regular or TC Tangent
  • Automatic Meter Reader Compatibility
  • Permanently Lubed Bearings
  • Temperature Compensation Available from -300°F to 1400°F
  • 10 (standard) or 25 (optional) PSIG MAOP
  • Full Warranty
  • 20 LT, 30 LT, 45 LT and #3-4 Sprague Hubs with 1-1/4" NPTM Swivels
  • Pointer or Odometer Index
Rated Gas Capacity for 0.60 S.G. Natural Gas
Inlet Pressure PSIG
Inches w.c. Differential
Capacity SCFH
0.25
1/2"
630
0.25
2"
1320
1
2"
1340
2
2"
1390
5
2"
1515
10
2"
1710
15
2"
1890
20
2"
2010
25
2"
2160

1 - Propane - 397 cfh
2 - Butane - 347 cfh

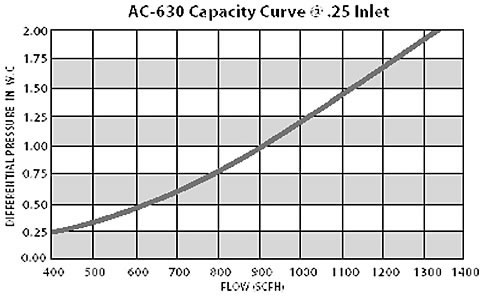

Capacity Curve

Weight 21 lbs
Connection-to-Connection 8-1/4"
Height 15.0"
Width 10.6"
Depth 10.0"

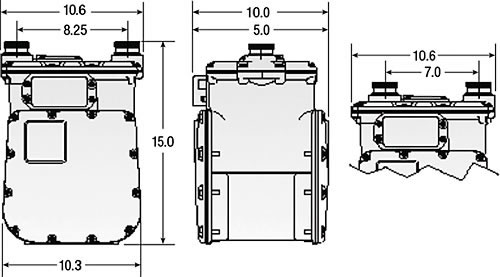

Dimensions

Download PDF Version
