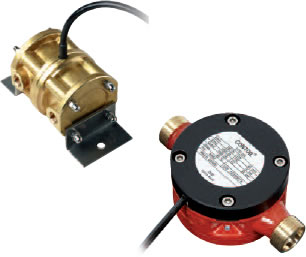

Aquametro Contoil DFM Fuel Meter Systems
DFM-BC (Board Computer) Gives All Information at a Glance
- Total Fuel Consumption
- Daily Fuel Consumption
- Current Consumption
- Info Mode
- Service Mode
- Supply or Return Line Status
- Correction Factor (e.g., temperature compensation)
- Configuration Log
- Error Log
Technical Data
- Safety – Tested for Vibration, Shock and Electrical Emission and Immersion (vehicle industry standards)
- Operation Temperature of the Hydraulic: -30°C to +80°C
- Diesel Fuel, Domestic Fuel Oil, Engine Oil (viscosity max. 6 cSt)
Table of Materials Used for the Flow Meters
| Device | DFM 8D |
DFM 8S |
DFM 20S |
DFM 25S |
| Part Number | 94465 |
04464 |
94466 |
94467 |
| Hydraulic Connection | M14x1.5 |
N14x1.5 |
G1" |
G1-1.1/4" |
| Nominal Pressure | 16 |
16 |
16 |
16 |
| Temperature (°C) | -30 to +80 |
-30 to +80 |
-30 to +80 |
-30 to +80 |
| Temperature Display (°C) | -20 to +60 |
-20 to +60 |
-20 to +60 |
-20 to +60 |
| Protection Class (IP) | 66 |
66 |
66 |
66 |
| Nominal Flow Rate (l/h) | 200 |
200 |
1000 |
200 |
| Minimum Flow Rate (l/h) | 10 |
10 |
100 |
200 |
| Accuracy (%) Better Than | 1 |
1 |
N/A |
1 |
| Repeatability (%) | ± 0.2 |
± 0.2 |
N/A |
± 0.2 |
| Safety Filter Mesh Size (mm) | N/A |
N/A |
0.400 |
0.400 |
| Volume of Measuring Chamber (ml) | 12.44 |
12.44 |
36 |
100 |
| Flow Sensor | I/Pulse (ml/pulse) |
Hz (max) |
Pulse Interval (min) |
Pulse Width |
mA (max) |
VDC* (range) |
| Double Sensor DFM 8D | 0.0125 (12.5) |
15 |
46 |
20 ms |
10 |
12-24 |
| Single Sensor DFM 8S | 0.0125 (12.5) |
15 |
46 |
20 ms |
10 |
12-24 |
| Single Sensor DFM 20S | 0.036 (36) |
15 |
46 |
20 ms |
10 |
12-24` |
| Single Sensor DFM 25S | 0.100 (100) |
15 |
46 |
20 ms |
10 |
12-24 |

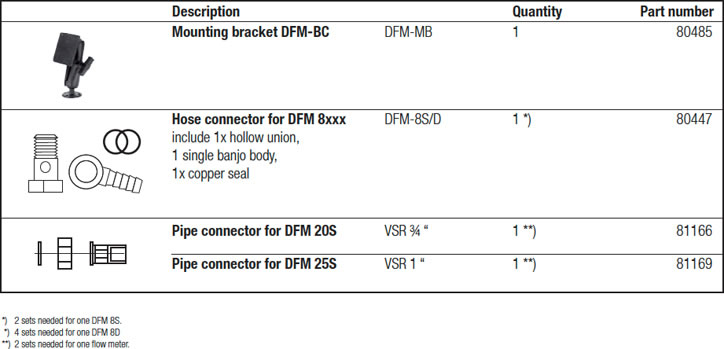

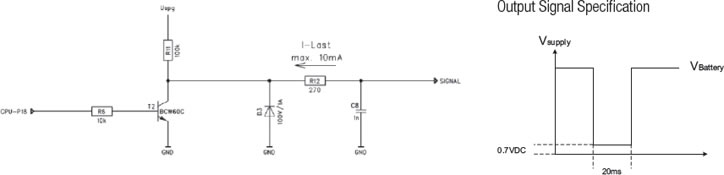

| Amplitude Range | Equal to Power Supply |
|||||
| Max Frequency of Input/Output Pulses | 25 Hz |
| Cable Length | 7.5m |
| Power Supply (direct from the vehicle battery) | 12VDC to 24VDC |
| Power Supply Cable | 2 x 0.75mm2 |
| Current Load (pulse in/pulse out; open drain output) Max | 15mA |
| Pulse Width (pulse in/pulse out) Min | 20ms |
| Output Operational Voltage Max | 48VDC |
| Device | DFM-BC |
| Part Number | 94476 |
| Registration (in liter) | 100,000,000 |
| Input (flow meter connections) adjustable from 0.1ml to 999.9ml | 2 |
| Output (for remote device) adjustable from 0.1ml to 9999.9ml | 1 |
| Temperature (°C) | -10 to +70 |
| Data Storage | EEPROM |
| Online Status of the Connected Flow Meters | Yes |
| Protection Class (IP) | IP66 |

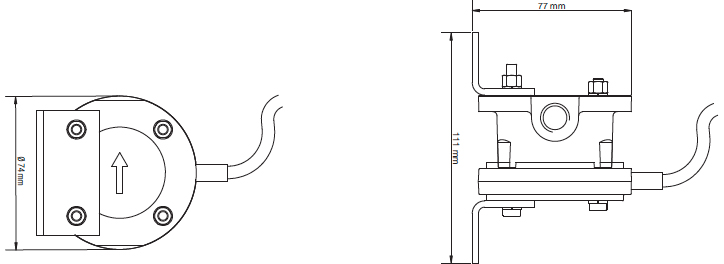

Contoil DFM-8S

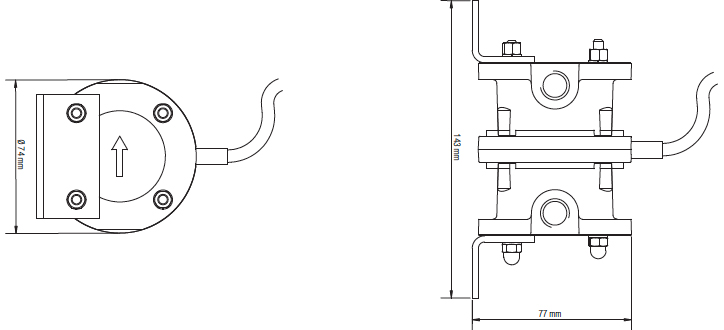

Contoil DFM-8D

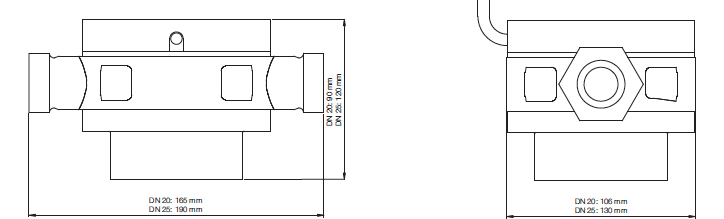

Contoil DFM 20S and DFM 25S
Contoil DFM-BC
Table of Materials used for the Flow Meters
| Parts | Materials |
DFM 8D, DFM 8EDM, DFM 8S |
DFM 20S, DFM 25S |
| Housing/Measuring Chamber | Brass |
√ |
46 |
| Housing/Measuring Chamber | Cast Iron |
√ |
|
| Seals | FPM Fluorelastomer |
√ |
√ |
| Rotary Piston | Anodized Aluminum |
√ |
√ |
